175-300hp

Pro XS® – outrun everything

Run with the engine that keeps setting new standards for performance—and winning. Anglers powered by Pro XS outboards have won more bass fishing tournaments than all other brands combined. With lightning-quick acceleration and top speed, legendary reliability, and lightweight design, it’s everything you need to push it farther, faster, and harder.

Engine Information and Specifications

Mercurymarine v8 proxs 2020 m2 repower 160x600

Select Horsepower

300

Engine Details

An unmatched combination of speed, fuel economy and low cost of ownership. Great for bass and multi-species fishing boats.

Specifications – 300

HP / kW
  • 300 / 224
Engine type
  • V-8
MidSection
  • Conventional MidSection
Displacement (CID/CC)
  • 279 CID
Displacement (L)
  • 4.6L
Cylinder Configuration
  • V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
  • 5600-6200
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 85-amp (1071 Watt) with Idle Charge

+ See All Specs

Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Electric Start with SmartStart Protection
Controls
  • Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
  • Hydraulic (standard)
  • Power (optional)
Shaft length
  • 20″ / 508 mm
  • 25″ / 635 mm
Gearcase ratio
  • 1.75:1
Dry weight *Lightest model available
  • 505 lbs / 229 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 20″: Torque Master
  • 25″: 5.44″
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Counter Rotation
  • Available
Color
  • Phantom Black
Lubrication system
  • Wet sump
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

- See Less

300hp v8 proxs fs port rear 3 4. Png 255x0 q85 autocrop crop scale subsampling 2 upscale

250

Engine Details

Great for bass and multi-species fishing boats.

Specifications – 250

HP / kW
  • 250 / 186
Engine type
  • V-8
MidSection
  • Conventional MidSection
Displacement (CID/CC)
  • 279 CID
Displacement (L)
  • 4.6L
Cylinder Configuration
  • V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
  • 5600-6200
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 85-amp (1071 Watt) with Idle Charge

+ See All Specs

Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Electric Start with SmartStart Protection
Controls
  • Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
  • Big Tiller (optional)
  • Hydraulic (standard)
  • Power (optional)
Shaft length
  • 20″ / 508 mm
  • 25″ / 635 mm
Gearcase ratio
  • 1.75:1
Dry weight *Lightest model available
  • 505 lbs / 229 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 20″: Torque Master
  • 25″: 5.44″
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Color
  • Phantom Black
Lubrication system
  • Integrated wet sump
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

- See Less

250hp v8 proxs fs port rear 3 4. Png 255x0 q85 autocrop crop scale subsampling 2 upscale

225

Engine Details

More power. Less fuel consumed. Fewer emissions. Great for bass and multi-species fishing boats.

Specifications – 225

HP / kW
  • 225 / 168
Engine type
  • V-8
MidSection
  • Conventional MidSection
Displacement (CID/CC)
  • 279 CID
Displacement (L)
  • 4.6L
Cylinder Configuration
  • V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
  • 5600-6200
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 85-amp (1071 Watt) with Idle Charge

+ See All Specs

Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions)
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Electric Start with SmartStart Protection
Controls
  • Digital Throttle & Shift (DTS)
Steering
  • Electro-hydraulic power steering
  • Joystick Piloting for Outboards
Shaft length
  • 20″ / 508 mm
  • 25″ / 635 mm
  • 30″ / 762 mm
Gearcase ratio
  • 1.75:1
Dry weight *Lightest model available
  • 600 lbs / 272 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 5.44″
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Counter Rotation
  • Available
Color
  • Phantom Black
Lubrication system
  • Integrated wet sump
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

- See Less

225hp v8 proxs fs port rear 3 4. Png 255x0 q85 autocrop crop scale subsampling 2 upscale

200

Engine Details

Maximized power, torque and overall performance for spectacular acceleration and top speed. Great for bass and multi-species fishing boats.

Specifications – 200

HP / kW
  • 200 / 149
Engine type
  • V-8
MidSection
  • Conventional MidSection
Displacement (CID/CC)
  • 279 CID
Displacement (L)
  • 4.6L
Cylinder Configuration
  • V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
  • 5600-6200
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 85-amp (1071 Watt) with Idle Charge

+ See All Specs

Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Electric Start with SmartStart Protection
Controls
  • Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
  • Big Tiller (optional)
  • Hydraulic (standard)
  • Power (optional)
Shaft length
  • 20″ / 508 mm
  • 25″ / 635 mm
Gearcase ratio
  • 1.75:1 (TorqueMaster or 5.44″); 1.85:1 (4.8″)
Dry weight *Lightest model available
  • 505 lbs / 229 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 20″: 4.8″
  • 20″: Torque Master
  • 25″: 5.44″
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Color
  • Phantom Black
Lubrication system
  • Wet sump
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

- See Less

200hp v8 proxs fs port rear 3 4. Png 255x0 q85 autocrop crop scale subsampling 2 upscale

175

Engine Details

Engineers packed incredible power into this lightweight and compact outboard. Great for bass and multi-species fishing boats.

Specifications – 175

HP / kW
  • 175 / 130
Engine type
  • V-6
MidSection
  • Conventional MidSection
Displacement (CID/CC)
  • 209
Displacement (L)
  • 3.4
Cylinder Configuration
  • V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Full throttle RPM
  • 5400-6000
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 85-amp (1071 Watt) with Idle Charge

+ See All Specs

Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Electric Start with SmartStart Protection
Controls
  • Remote Mechanical
Steering
  • Big Tiller (optional)
  • Hydraulic (standard)
  • Power (optional)
Shaft length
  • 20″ / 508 mm
  • 25″ / 635 mm
Gearcase ratio
  • 1.85:1
Dry weight *Lightest model available
  • 470 lbs / 213 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 4.8″
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Color
  • Phantom Black
Lubrication system
  • Integrated wet sump
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

- See Less

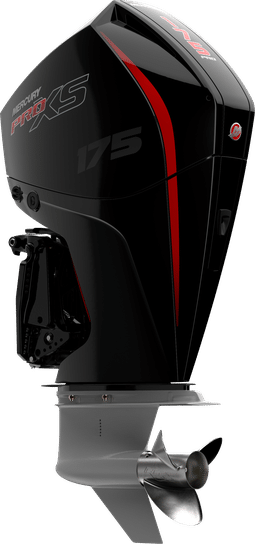

175hp proxs v 6 fs port rear 3 4. Png 255x0 q85 autocrop crop scale subsampling 2 upscale
